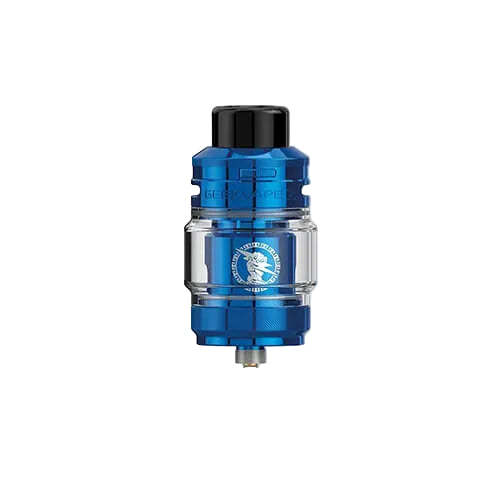

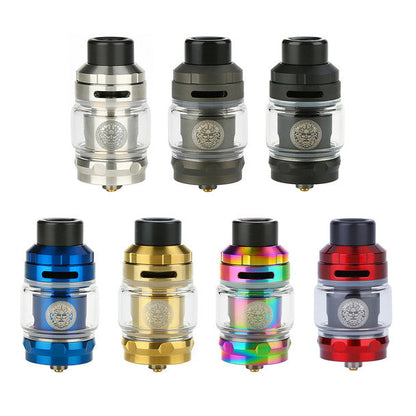

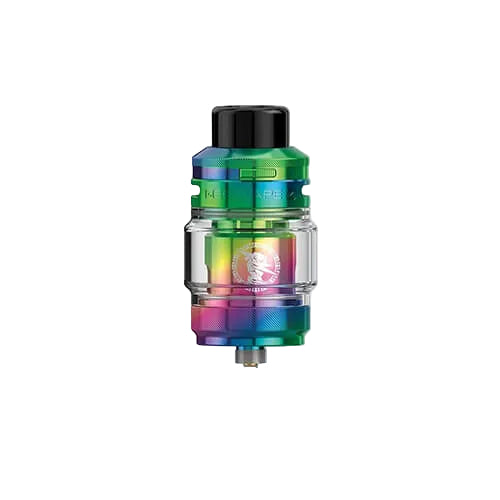

Geekvape Z (Zeus) Sub-Ohm Tank | Original 5ml

The Geekvape Z (Zeus) Sub-Ohm Tank is the original 5ml Zeus sub-ohm tank, designed for powerful direct-to-lung vaping with top airflow, plug-and-play Z Series coils and a leak-resistant top-to-bottom airflow system.

Please note: this is the original 5ml Z/Zeus tank. It is not the newer Geekvape Z Sub-Ohm Tank 5 (5.5ml).

Key Features

• 5ml e-liquid capacity
• 3.5ml spare straight glass included
• 26mm diameter × 42.5mm height (excluding drip tip)
• Adjustable direct top airflow
• Top-to-bottom airflow for reduced leaking
• Quarter-turn top-fill cap
• Push-fit / quick-slide coil installation
• Removable 810 drip tip
• Designed for DTL vaping
• Uses Geekvape Z Series replacement coils

Included Coils

• Mesh Z2 0.2Ω – pre-installed, 70–80W
• Mesh Z1 0.4Ω – spare coil

Geekvape has revised naming and wattage markings across later Z Series coil generations. Always follow the wattage range printed on the coil you are using.

Compatible Replacement Coils

This tank uses the Geekvape Z Series coil platform, including current compatible Z Series and Z XM Boost replacement coils.

Shop Geekvape Z XM Boost replacement coils →

Shop classic Geekvape Z Series replacement coils →

How to Refill

1. Turn the top cap approximately 90° and remove it.
2. Fill through one of the side filling ports.
3. Avoid pouring e-liquid into the centre airflow chimney.
4. Refit the top cap securely.

How to Change the Coil

1. Remove the tank from your mod and turn it upside down.
2. Unscrew the bottom base.
3. Pull the old push-fit coil out.
4. Prime the new coil with a few drops of e-liquid.
5. Push the new coil firmly into place.
6. Reassemble, fill the tank and allow the coil to saturate before use.

What’s in the Box?

• 1 × Geekvape Z (Zeus) Sub-Ohm Tank – 5ml
• 1 × Mesh Z2 0.2Ω Coil – pre-installed
• 1 × Mesh Z1 0.4Ω Coil
• 1 × 3.5ml Spare Glass Tube
• 1 × Coil Tool
• 1 × Spare Parts Pack
• 1 × User Manual

Looking for the Newer Version?

If you want the latest model with the larger 5.5ml capacity and upgraded top-push filling system, see the Geekvape Z Sub-Ohm Tank 5 →

Important: This is a high-output DTL sub-ohm tank. Use with a suitable regulated mod and e-liquid appropriate for sub-ohm vaping.
